Spinning
What is Yarn ?
Yarn is a continuous strand either composed of natural or
man-made fibre or filament and
its use in knitting or weaving to make a cloth.
Spinning of yarn
Spinning is defined as the process of converting fiber or filament into yarn. The process of converting cotton fibers from ginned lint into a yarn involves a number of processes that aim to clean, remove short fibers, align fibers and ultimately spin the yarn and prepare it for Weaving and Knitting.
Yarn Production
Flow chart with diagram:
Blow Room
Blow room is the process that takes care of opening,
cleaning and blending of different fibres used in the mixing. The technological
improvements are remarkable in this process.
Operation :
• Opening
• Cleaning
• Mixing or blending
• Micro dust removal
• Uniform feed to the carding machine
• Recycling the waste
Objectives of blow room process
1. Opening: To open the
compressed layer of bale of cotton or any staple fibers with minimum damage to
the fibers.
2. Cleaning: To remove the
impurities like sand, seed, trash, contamination, neps & short fibers
present in the cotton with minimum loss of lint by opening & blending.
3. Mixing and Blending: To mix
the fibers evenly, to avoid the variation in shade.
4. Uniform Feed: To convert the
mass of cotton fibers into a uniform thick sheet of cotton both longitudinally
& transversely & fed as it in the case of chute feed system or wound in
the form of a compactly built lap with minimum lap rejection.
5. De-dusting: Intensive de-dusting of cotton fibers to extract micro- dust in order to improve the working of opened spinning m/c.
Blow room |

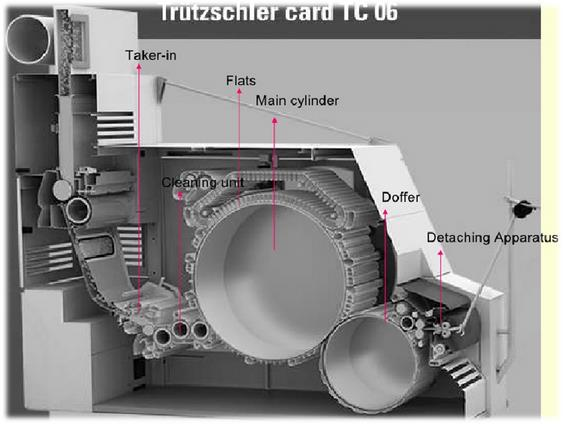

Carding
"Card is the heart of the spinning mill“
"Well carded is half spun"
High production carding has now become an established practice for short-staple fibers. Production capacity in recent carding machines can be increased substantially without deterioration in quality.
Purpose :
• To open the flocks into
individual fibres
• Removal of trash
• Removal of neps
• Elimination of dust
• Elimination of short fibres
• Fiber blending
• Fiber orientation or alignment
• Sliver formation

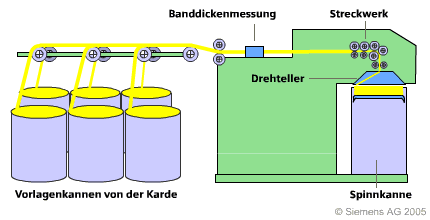

Draw Frame
Draw frame contributes less than
5% to production cost of yarn. But its influence on quality is very big,
because drawing is the final process of quality improvement in the spinning
mill and quality of draw frame sliver determines the final yarn quality.
Task :
• Through doubling the
slivers are made even
• Doubling results in
homogenization (blending)
• Through draft fibres get
parallelized
• Hooks created in the card are
straightened
• Through the suction, intensive
dust removal is achieved
• Autoleveller maintains absolute sliver fineness.
Drawing Frame |
Combing
Combing is the process that removes the final proportion of short fiber, neps and other impurities such as vegetable matter and seed coat fragments in cotton that has already been carded Combed yarns are generally finer, stronger, smoother and more uniform, due to the removal of short fibers and the alignment of fibers.
Tasks:
• Removal of short fiber waste called Comber Noil.
• Neps Reduction
• Yarn evenness
• Strength
• Cleanness
• Smoothness
• Visual appearance
Comber frame |
Roving frame
A roving frame is a machine used
in the spinning process to convert sliver (thick rope-like strand of fibers)
into roving (a thin and lightly twisted strand of fibers), which is then used
as a feedstock for the ring frame. The working of the roving frame in spinning
can be described in the following steps:
The sliver is first fed into the
machine from a creel, where it is held in a package. The sliver passes through
the drafting system of the machine, which draws the fibers out to the desired
thickness.
The drafted fibers are then
twisted together to form a slightly twisted strand of fibers called roving. The
roving frame achieves this by rotating a spindle, which twists the fibers
together as they pass through the machine.
As the roving is formed, it is wound
onto a bobbin that rotates at the same speed as the spindle. The bobbin is then
taken up by a bobbin holder, which moves across the machine as the roving is
wound onto it.The roving is wound onto the bobbin in a regular pattern, forming
a cylindrical package of roving.When the bobbin is full, it is removed from the
machine, and a new empty bobbin is put in its place.
The roving is then ready to be
fed into the ring frame for further processing into yarn.
Overall, the roving frame plays a crucial role in the spinning process, converting sliver into roving that is suitable for feeding into the ring frame. The roving frame ensures that the fibers are drafted and twisted to the desired thickness and twist level, producing high-quality roving that can be used to produce high-quality yarn.
Roving frame |
Ring Frame
The ring spinning will continue to be the most widely used form of spinning machine in the near future, because ring spinning still offers the greatest flexibility in application and supplies yarns of a quality that cannot be equaled by the new technologies owing to technological reasons.
Function :
• To draft the roving until the
required fineness is achieved
• To impart strength to the
fiber, by inserting twist
• To wind up the twisted strand (yarn) in a form suitable for storage, transportation and further processing.
Ring frame |
